MOTOmed loop.k - Overview

Movement therapy for older children (see Gracile for the little ones)

To live the natural urge to move is the greatest need for children and adolescents. With the MOTOmed loop kidz even children with disabilities can fulfill this desire whether from chair, seat shell or wheelchair. Active, assistive or passive. Depending on possibility and individual condition. The passive MOTOmed Movement can lead to a reduction in muscle tone in spasticity. Additionally, it prevents the shortening of muscles and the occurrence of contractures. At the same time the motor-assisted movement with the MOTOmed enables an active training - even with residual muscle strength.

Excellent digital intelligence and intuitive usability for kids

The MOTOmed loop impresses with its unique digital intelligence and its visual appearance. Almost all models can be upgraded in terms of equipment and functionality by means of an Upgrade Bundle. The MOTOmed loop also features its unique height adjustment, with which users can adjust the height of their MOTOmed models without tools, as well as the quick and easy switch from arm to leg training. In addition, the high-quality material of the softly rounded surfaces of the MOTOmed next generation meets the high demands of hygiene management in facilities and clinics.

This also convinced the internationally renowned jury of the German Design Award 2019 that awarded the MOTOmed loop the "Special Mention" award.

MOTOmed LOOP - very useful in Lockdown
"I have Cerebral Palsy and it is extremely important that I keep myself mobile so by purchasing Loop I could work on my arms and my legs to prevent further deterioration...."



Regaining strength and reducing swelling with the new LOOP
"My Mam had a stroke in December of last year, she started physio in hospital which included use of the MOTOmed...."



New MOTOmed LOOP aids stroke recovery
"My partner Michael (61years old), had a severe stroke in September 2019. It left him with right sided paralysis and speech difficulties...."

MOTOmed Loop.k Properties

Basic Configuration

• Plastic-coated safety foot shells with Velcro fastening
• Soft Grip handles
• Height adjustment of leg or arm/upper body trainer can be adjusted without tools.
• Pedal axle of the leg trainer is height adjustable from 30 cm to 45 cm.
• Pedal axle of the arm trainer is height adjustable from 90 cm to 105 cm.
• Color touch display (7"), retractable and inclinable.
• Stable metal construction, high quality and stable.
• 2-stage pedal radius adjustment (7 cm or 12.5 cm).
• Closed plastic body (PC/ABS), easy to clean and disinfect.
• Easily movable with large transport rollers (Ø 13 cm).
• Serial interface, USB interface.
• Reduced device stand width to 38.5 cm.
• Therapy and motivation programs
• Training programs & Games
• Slideshow via USB (delivered without USB stick)
• Color: white/chrome/black.


Technical Data

• Dimensions in cm (l x w x h): 70 x 60 x 107–122 cm
• Weight [loop]: 33 kg / 72lbs
• Maximum permissible user weight: 135 kg / 297 lbs
• Screen size: 7" / 18 cm
• Classification according to MPG IIA
• Power supply: 100-240 V~ / max. 120 VA
• Power frequency: 47-63 Hz
• Classification Protection Class II/ Type BF


View MOTOmed Loop.k Functions

Change of training at your touch (for arm and leg model)

Change of training made easy: The change from arm to leg training at the MOTOmed loop.p.la is controlled directly on the display. The MOTOmed loop.p.la reacts digitally per touch and switches the training mode automatically. The new 7'' big color touch display can be operated easily and intuitively and offers intelligent functions of innovative form. Naturally, the display is suitable for wipe disinfection.

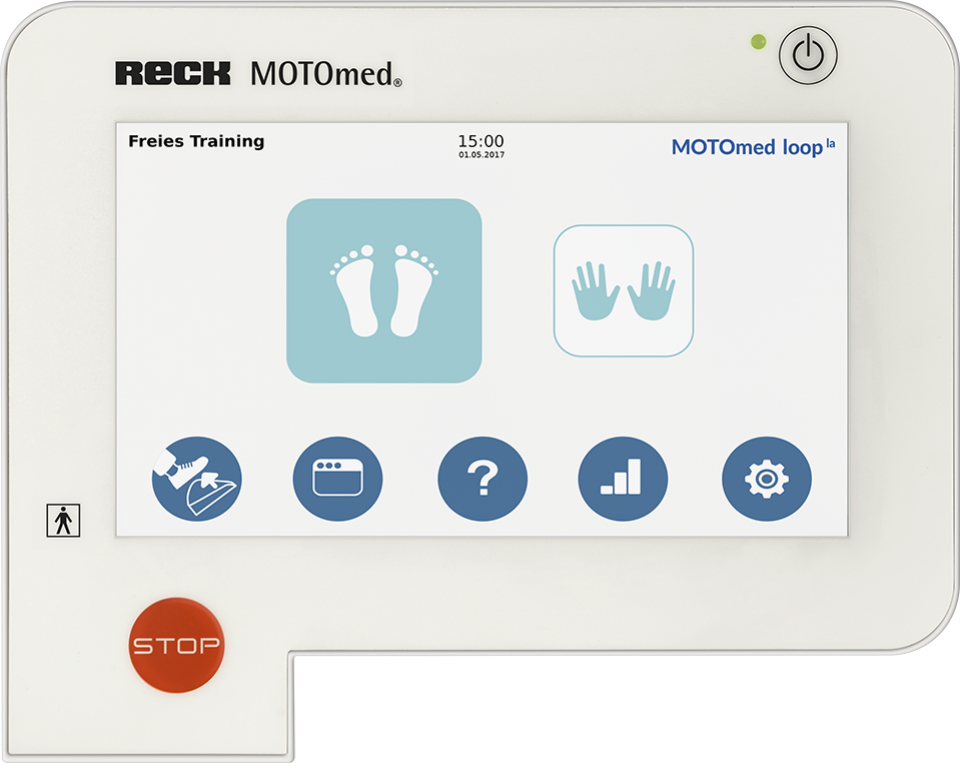

Intuitive operating unit

The new 7'' big color touch display can be operated easily and intuitively and offers intelligent functions of innovative form. Naturally, the display is suitable for wipe disinfection.

• Therapy programs
• Games and videos
• Slideshow
